ascen707 Posted September 30, 2009 Share Posted September 30, 2009 Hello everyone! One question, I just install AutoCAD 2010 at work. Why is that some times when I plot it only plot part of the drawing. I have set the plotting to extend and center the page.. I have try to set the drawing on a new page. Some time it plots fine but them it does not. Thank you for your help. Quote Link to comment Share on other sites More sharing options...
ReMark Posted September 30, 2009 Share Posted September 30, 2009 Maybe an issue with your plotter drivers? When you say it plots only part of the drawing could you be more specific? Is it plotting only a portion of an object? Is it plotting some layers but not others? Is it not plotting some text that it should be plotting? Have you checked plot settings? Have you physically inspected the connection between the computer and the plotter or are you plotting over a network? What version of AutoCAD were you running previously? Did you have problems plotting from that version as well? Quote Link to comment Share on other sites More sharing options...

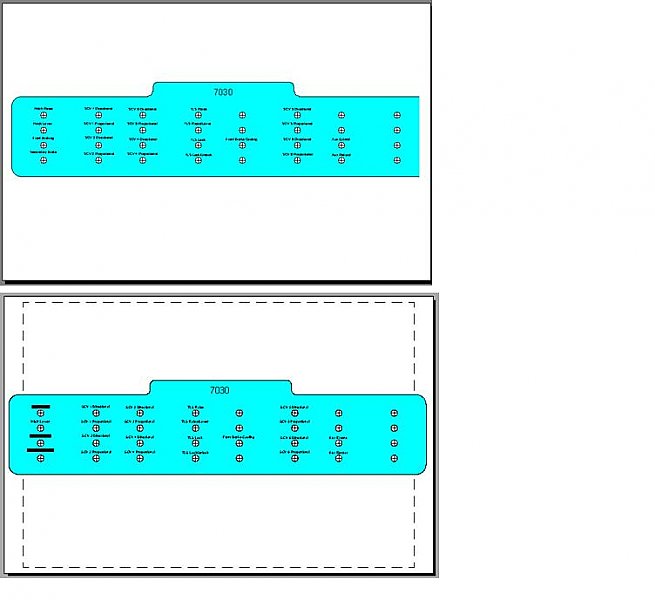

ziemerd Posted October 7, 2009 Share Posted October 7, 2009 I think I'm having the same problem. I've attached a JPG with the top picture being the Print Preview and the bottom picture is the drawing in Paper Space. I have gotten it to work just fine before but now it doesn't matter if I choose Display, Extents, or Layout. I checked the other plotter and I get the same thing. Quote Link to comment Share on other sites More sharing options...
ziemerd Posted October 7, 2009 Share Posted October 7, 2009 Here is a JPG of my Plot Settings. Please let me know if there is something I am missing. Thanks. Dawn Quote Link to comment Share on other sites More sharing options...
sparkyuk Posted October 7, 2009 Share Posted October 7, 2009 might be me being a bit thick here but isnt that picture showning the max size of your plot as a dotted line and isnt it over hanging the same distance as it is cut off ?,in which case its to big for the paper you are printing to ? Quote Link to comment Share on other sites More sharing options...
ziemerd Posted October 7, 2009 Share Posted October 7, 2009 Well...I think I'm the one who is thick. I trimmed the ends of the decal to make it fit in the dashed lines and it worked fine. Thanks. Quote Link to comment Share on other sites More sharing options...
sparkyuk Posted October 8, 2009 Share Posted October 8, 2009 scale to fit is the correct way to do it isnt it ? Quote Link to comment Share on other sites More sharing options...
ReMark Posted October 8, 2009 Share Posted October 8, 2009 scale to fit is the correct way to do it isnt it ? Only if you don't mind not having a drawing that is plotted to scale. Quote Link to comment Share on other sites More sharing options...
sparkyuk Posted October 8, 2009 Share Posted October 8, 2009 dont matter how big your paper is, it can still fit in scale if you scale it correctly to the paper size,its because it was scaled to big for the paper size isnt it ? or did I miss something ? Quote Link to comment Share on other sites More sharing options...
ReMark Posted October 8, 2009 Share Posted October 8, 2009 I think we said the same thing differently or I am confusing your "scale to fit" with the plot option of "Fit to paper". Quote Link to comment Share on other sites More sharing options...
sparkyuk Posted October 8, 2009 Share Posted October 8, 2009 yes I was saying scale it to fit, not fit to paper you are correct fit to paper is not good if you want it in scale lol Quote Link to comment Share on other sites More sharing options...
