Can anyone offer advice on a simple method for solving an issue I'm having with a model of Crown Molding. I have attached a sample of the issue. The molding is all in the correct planes and at the correct angles. I want the three pieces to be aligned and simulate the actual Miter cut that is required to join the pieces without actually combining the solids in the drawing so that I can have an exploded view of each piece with dimensions.



Intersect of course leaves me the Miter itself without the molding, I'm sure there is a way to accomplish this I just seem to be having a brain fart at the moment.



Regards



The attachment is ACAD 2007

3d Molding problem.dwg

[kencaz]

I would use slice for this.



First draw a 45 degree line in plan view across your miter line.



Extrude the line to create a surface.





Scale the surface if needed to cover all solids.

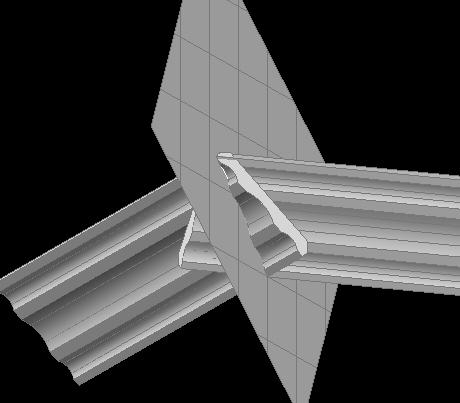

Slice using the "Surface" option keep or remove the desired sides if you wish.

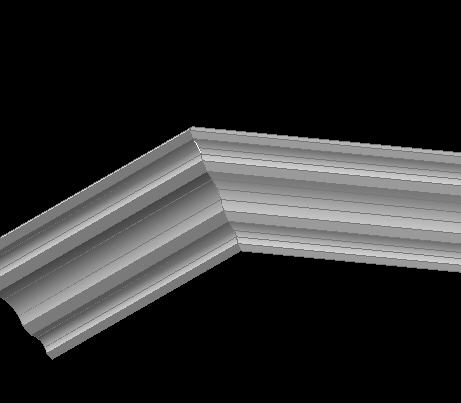

Now you should have 2 separate solids.





KC

[arkansascontrols]

Many thanks, that did the trick

[tzframpton]

Not to take away from kencaz, because his help does do the trick but your approach is all wrong.



Draw the 2D profile section of the crown molding, then draw a PLINE to represent the "path". Then use the EXTRUDE command and use the PATH option. This will take many unnecessary steps out of your current procedure. Hope this helps



Example:

[kencaz]

Not to take away from kencaz, because his help does do the trick but your approach is all wrong.



Draw the 2D profile section of the crown molding, then draw a PLINE to represent the "path". Then use the EXTRUDE command and use the PATH option. This will take many unnecessary steps out of your current procedure. Hope this helps



Example:



Thanks StykFacE, I am aware of this method, however, Since this was after the fact, I suggested slicing it.



Also, he wanted 3 separate sections and extruding would have resulted in a single solid. Either way he would have had to slice it.



KC

[tzframpton]

I figured you were, like I said I wasn't trying to take anything away from you at all. Just thought I'd throw it out there in case he's new to 3D.

[kencaz]

That's why we are all here right... To help each other find different solutions for solving problems. By all means if you see a better option for doing something, fire away.



KC

[NYATI]

Hi Guys



Usually extrude to path works fine but I have had some instances where the profile I wish to extrude follows path but is offset. I.e. LWPoly around door as path. Start extrude with corner of profile on end of poly goes up & across ok, but offsets on "down". I have worked around it by changing position of path relative to profile, ie moving it midpoint of a profile or even sometimes placing profile at the last vertex of path and extruding in the opposite direction. Is it just me or is this a AutoCAD quirk? This has occured in AutoCAD Architecture 2008 and MAP 2008.



Thanks



Nyati

[tzframpton]

Hi Guys



Usually extrude to path works fine but I have had some instances where the profile I wish to extrude follows path but is offset. I.e. LWPoly around door as path. Start extrude with corner of profile on end of poly goes up & across ok, but offsets on "down". I have worked around it by changing position of path relative to profile, ie moving it midpoint of a profile or even sometimes placing profile at the last vertex of path and extruding in the opposite direction. Is it just me or is this a AutoCAD quirk? This has occured in AutoCAD Architecture 2008 and MAP 2008.



Thanks



Nyati

use the 3DPOLY command instead. This will allow the path to be followed in all 3 axis and not just X,Y.

[NYATI]

Thanks StykFacE for tip, will try it next time.
