Circle-Isometric Snap

[Shibuboss]

Hello everybody,



In Isometric Snap mode, the " Circle " is not coming parrallel to the plane.what should be the reason? please advise. ( check the attachment) Thank you.



Regards_____

[CADMASTER1128]

You can adjust the snap by hitting F5, that will switch the orientation of the circle being drawn....

[Shibuboss]

Thanks for your replay,



Did you try this method to draw circle.it's not working.instead of hitting " F5 " i used " ctrl+E ".but my friend it's not working.i am using autocad Lt.may be this could be the reason? or somethingelse?

Thankyou.



Regards______

[CADMASTER1128]

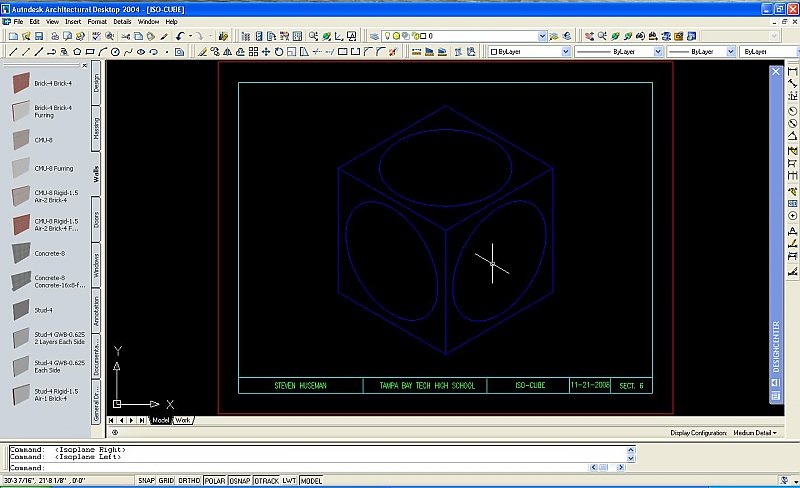

I have the cursor adjusted to fit the following circle. I used the F5 key as well... It works with my Architectural desktop.... See the attached image:

[Shibuboss]

Thanks for your replay,



But it's still not working in Autocad Lt and autocad 2009.I have to adjust any settings.i tried both softwares.please advise.Thank you.



Regards_____

[SEANT]

Isometric circles can be generated through Ellipse-Isocircles.





Command: _ellipse

Specify axis endpoint of ellipse or [Arc/Center/Isocircle]: I



Specify center of isocircle:

Specify radius of isocircle or [Diameter]:

[Shibuboss]

Hi SEANT,



Thanks a lot.



Regards______

[CADMASTER1128]

Isometric circles can be generated through Ellipse-Isocircles.





Command: _ellipse

Specify axis endpoint of ellipse or [Arc/Center/Isocircle]: I



Specify center of isocircle:

Specify radius of isocircle or [Diameter]:



Thanks for that!! This drawing is a year old I completely forgot that I used and ellipse!



-Steven

[SEANT]

It is a bit unintuitive that AutoDesk only included that sub-option with the Ellipse command. I understand why it's referenced with ellipse, but they could have included that feature in the Circle sub-options as well.

[CADMASTER1128]

I haven't had to use it yet, but I would assume that Autodesk would keep the ellipse sub-options like in 2004... correct?

[skipsophrenic]

I haven't had to use it yet, but I would assume that Autodesk would keep the ellipse sub-options like in 2004... correct?



Not 100% sure but I THINK that 2004's ellipses have the same sub-menu - as havent used it for a while i can't quite remember

[CADMASTER1128]

Not 100% sure but I THINK that 2004's ellipses have the same sub-menu - as havent used it for a while i can't quite remember



Allow me to edit that:



I haven't had to use it yet, but I would assume that Autodesk would keep the ellipse sub-options like in 2004 in the 2010 software... correct?

[skipsophrenic]

I'd say that's a safe assumption, as it was same from 2006 - 2010 that i can recall

[CADMASTER1128]

Making mental note to use ellipse when needing an isometric circle.
