Lenght of part of circle

[mdbdesign]

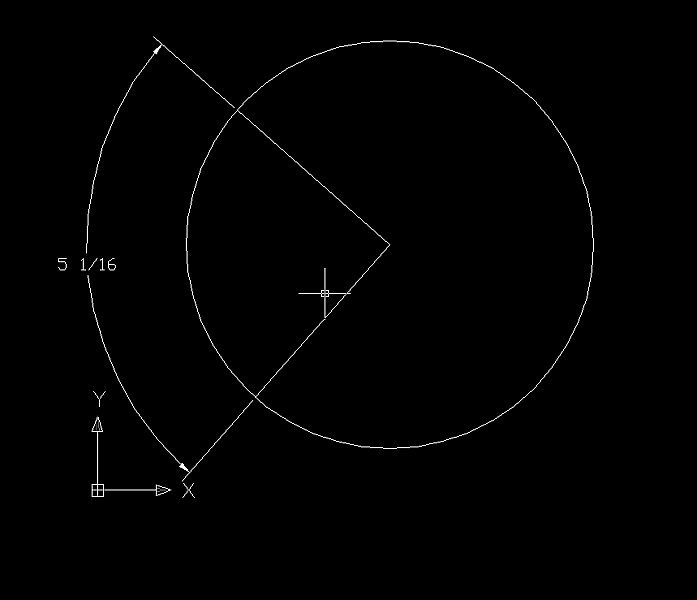

It is possible to get arc dimension as shown below without breaking circle apart, just selecting two points on circle???

[Lee Mac]

Yes, I believe this is possible through the use of the vlax-curve functions, specifically, vlax-curve-getDistatPoint.



If you need further help, just shout.



Lee

[mdbdesign]

I use 2002 and was curious if Autodesk develop something in newer version to do it.

[Lee Mac]

Well there is Arc-Length dimensioning, but, of course, it only works on arcs...



As for the LISP alternative:



(defun ArcLen (Ent pt1 pt2)
 (abs
   (- (vlax-curve-getDistatPoint Ent Pt2)
        (vlax-curve-getDistatPoint Ent Pt1))))

[mdbdesign]

Command: _appload Arclen.lsp successfully loaded.





Command:

Command:

Command: ARCLEN

Unknown command "ARCLEN". Press F1 for help.



Is my machine still on vacation???

[Lee Mac]

Arclen is a sub-function and requires three arguments, namely the entity in question (circle), and two points.

[Lee Mac]

As an example.... With absolutely no error trapping:



(defun c:test (/ Cir p1 p2)
 (if (and (setq Cir (car (entsel "\nSelect Circle: ")))
          (setq p1 (getpoint "\nSelect First Point: "))
          (setq p2 (getpoint "\nSelect Second Point: ")))
[color=Red][b]    (ArcLen Cir p1 p2)))[/b][/color]

[ronjonp]

Here's your solution Lee with a bit more error trapping



(defun arclen (ent pt1 pt2)
 (if (not (vl-catch-all-error-p (vl-catch-all-apply 'vlax-curve-getendparam (list ent))))
   (abs (- (vlax-curve-getdistatpoint ent (vlax-curve-getclosestpointto ent pt2))
       (vlax-curve-getdistatpoint ent (vlax-curve-getclosestpointto ent pt1))
    )
   )
 )
)
(arclen (car (entsel)) (getpoint) (getpoint))

[Lee Mac]

Thanks Ron



Another, with slightly more info:



(defun ArcLen (Ent pt1 pt2 / Cir Arc)
 (vl-load-com)
 (if (not (vl-catch-all-error-p
            (setq Cir
              (vl-catch-all-apply
                'vla-get-Circumference
                  (list
                    (vlax-ename->vla-object Ent))))))
   (list
     (setq arc
       (abs
         (- (vlax-curve-getDistatPoint Ent
              (vlax-curve-getClosestPointto Ent Pt2))
            (vlax-curve-getDistatPoint Ent
              (vlax-curve-getClosestPointto Ent Pt1)))))
     (- Cir arc))))

(defun c:test (/ ent p1 p2)
 (if (and (setq ent (car (entsel "\nSelect Circle: ")))
          (setq p1 (getpoint "\nPt1: "))
          (setq p2 (getpoint "\nPt2: ")))
   (print (ArcLen ent p1 p2)))
 (princ))

[mdbdesign]

I was off just half an hour (still working) let me try...

[mdbdesign]

Thanks Lee now I will try to incorporate two lisp routine to get me result as on picture in first post. Attached is dimarc lisp.

What you think ? Will work??

DIMARC.LSP

[Lee Mac]

The DIMARC command will only allow an arc/polyline seg input - so no, I don't think that will work, unless you created a temporary arc, dimensioned it, then deleted it.

[mdbdesign]

That is what I did so far. Got another lisps that divide circle on section and change layer of selected part to Hidden (yours) and another that create circle out of arc. So if I combine it in macro it should work.

[VovKa]

Lee Mac, you should add some extra checks to you code

(mapcar	'entmakex
'(((0 . "CIRCLE") (10 21.3977 221.18 0.0) (40 . 20.1493))
  ((0 . "LINE") (10 21.3977 221.18 0.0) (11 41.2409 224.679 0.0))
  ((0 . "LINE") (10 21.3977 221.18 0.0) (11 41.547 221.18 0.0))
  ((0 . "LINE") (10 21.3977 221.18 0.0) (11 41.2409 217.682 0.0))
 )
)

calculate arc length between upper and middle line, then between middle and lower line... they should be equal

[Lee Mac]

Indeed they are VovKa (within reason):



Command:

Command: test

Select Circle:

Pt1:

Pt2:

(3.51682 123.085)



Command:

Command:

TEST

Select Circle:

Pt1:

Pt2:

(123.086 3.51584)

[Lee Mac]

Something like this perhaps M?



(defun c:DimCir (/ doc spc ent p1 p2 ax cen)
 (vl-load-com)

 (setq doc (vla-get-ActiveDocument
             (vlax-get-Acad-Object))
       spc (if (zerop (vla-get-activespace doc))
             (if (= (vla-get-mspace doc) :vlax-true)
               (vla-get-modelspace doc)
               (vla-get-paperspace doc))
             (vla-get-modelspace doc)))

 (if (and (setq ent (car (entsel "\nSelect Circle: ")))
          (eq "CIRCLE" (cdr (assoc 0 (entget ent))))
          (setq p1 (getpoint "\nPt1: "))
          (setq p2 (getpoint "\nPt2: ")))
   (progn
     (setq ax
       (vla-addArc spc
         (vlax-3D-point
           (setq cen
             (cdr (assoc 10 (entget ent)))))
         (cdr (assoc 40 (entget ent)))
         (angle cen p1) (angle cen p2)))
     (vlax-invoke spc 'adddimarc cen p1 p2 p1)
     (vla-delete ax)
     (vl-cmdf "_.dimtedit" (entlast) pause)))

 (princ))

[VovKa]

Lee Mac, you know what I mean

the answer should be a real number but not a list

[Lee Mac]

Lee Mac, you know what I mean

the answer should be a real number but not a list



I know :wink:



But, how does one know what arc they want?

[mdbdesign]

Made button:

^C^C(load "brcirc") _brcirc \\\^C^C_(load "dimarc") -la;set;dimension;;_dimarc \\ _erase;\ ^C^C_(load "a2c.lsp") _a2c



and all lisp file attached.

Work like charm.



Something like this perhaps M?

I got 2002 only

brcirc.lsp

DIMARC.LSP

A2C.LSP

[Lee Mac]

Made button:

^C^C(load "brcirc") _brcirc \\\^C^C_(load "dimarc") -la;set;dimension;;_dimarc \\ _erase;\ ^C^C_(load "a2c.lsp") _a2c



and all lisp file attached.

Work like charm.



I got 2002 only



Oh, what command is missing in '02?
