create three radius together

[hdude]

I have no training in this software. I've just been kind of thrown into it at work, luckily it is just 2D stuff we draw and mostly pretty basic. I cannot figure out how to create three different radius' in a row. I made a hand drawn (poorly) example of what I need to do. I am at home right now, so I don't have access to autocad right now.

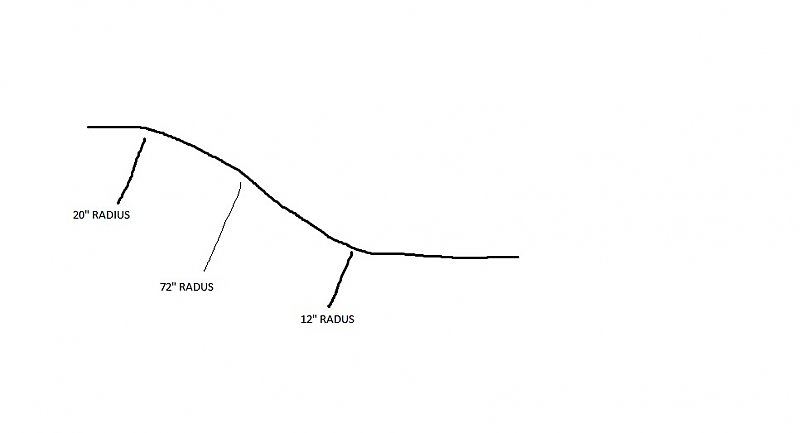

I have attached a .jpg of my windows paint sketch of what I am looking to do, but I have now idea how to do it. I can get the radius of the left most and right most radius, but have no idea how to get the middle one.



Hopefully someone can give me a clue how to do this.

[lpseifert]

Draw a circle R=72

Draw a line from center of circle L=20 in the direction where you want tangency

Move line from 2nd endpoint to Appint of line and circle

Draw circle R=20 from !st endpoint of line

Draw line from center of 72R circle L=12 in the direction where you want tangency

Move line from 1st endpoint of line to Appint of line and 72R circle

Draw circle R=12 from 2nd endpoint if line R=12

Erase lines, trim/break circles as necessary



There might be an easier way, but this is the first to come to mind



You might want to try using a polyline with the Arc and radius options

[BIGAL]

Simple use circle TTR then trim



It sounds like you have found the bug in the fillet command if you have two circles or arcs and want to add a third autocad often gives you a S bend as an answer

[pattyandme]

Draw 3 arcs while snaping to the end of each with object snap then enter the radius in properties.

you can define the arc length of each as well.
