NeManja Posted March 22, 2008 Posted March 22, 2008 Everything is writed, help pls, I need it a loot. Quote
SEANT Posted March 22, 2008 Posted March 22, 2008 The only way I can do it in 2004 is via EdgeSurf as in attached. HypParabo.dwg Quote
SEANT Posted March 22, 2008 Posted March 22, 2008 I guess splitting and mirroring was not needed. I wasn't sure EdgeSurf would interpolate correctly, but it seems like it does. HypParabo_SingleSurf.dwg Quote
NeManja Posted March 22, 2008 Author Posted March 22, 2008 Thnx, I don't have CAD here but I'll check it tomorow. If u have some new ideas just post them. (: Quote
SEANT Posted November 29, 2009 Posted November 29, 2009 Hey I remember this thread. Back when I was still toiling with AutoCAD 2004. Actually, I liked that release. But, in deference to shiny new features, here’s a hyperbo-parabo AutoCAD 2009 style. This lofted surface is more easily converted to a solid, if that were a requirement. HypParabo_LoftSurf.dwg Quote
CM Hew Posted November 30, 2009 Posted November 30, 2009 I have done some drawings of the hyperbolic paraboloid and also elliptical paraboloid using mesh command using calculated data fed from EXCEL in AutoCAD 2004. It this what you are looking for? 3D Equation Elliptical and Hyperbolic Paraboloid.dwg Quote
cadcadet Posted December 12, 2011 Posted December 12, 2011 Is it possibleto create a hyperbolic paraboloid in revit? or dose anyone know how to convert one of these drawing into a revit file? Quote
ReMark Posted December 13, 2011 Posted December 13, 2011 Importing AutoCAD files to Revit. http://2learncad.com/blog/2010/03/importing-autocad-revit/ Quote
cadcadet Posted December 14, 2011 Posted December 14, 2011 Thanks for the help on how to import it, now dose anyone know how I can turn it into a solid? I lwould like to use it as to roof of a building. Quote
the downing effect Posted January 23, 2013 Posted January 23, 2013 I have done some drawings of the hyperbolic paraboloid and also elliptical paraboloid using mesh command using calculated data fed from EXCEL in AutoCAD 2004. It this what you are looking for? That is really amazing. How did you get excel to make those shapes in Autocad? Quote

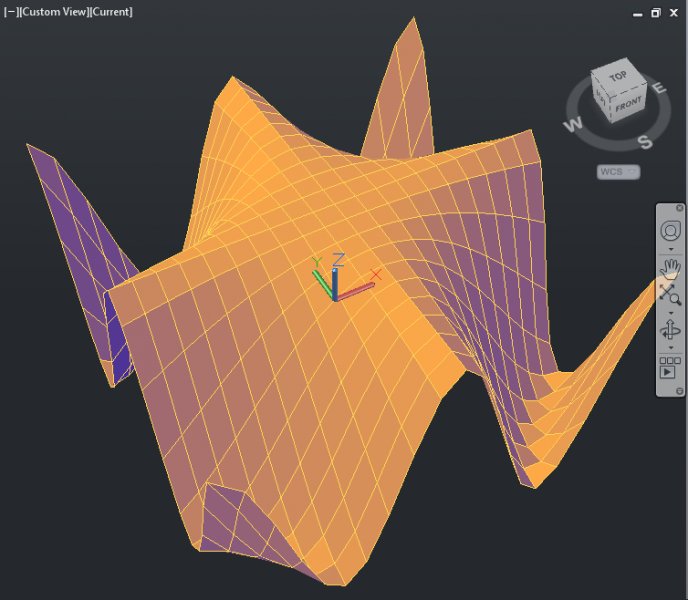

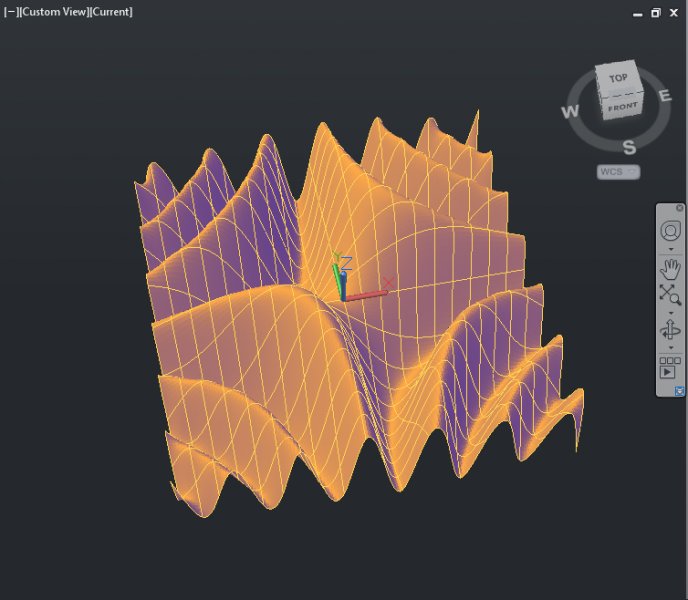

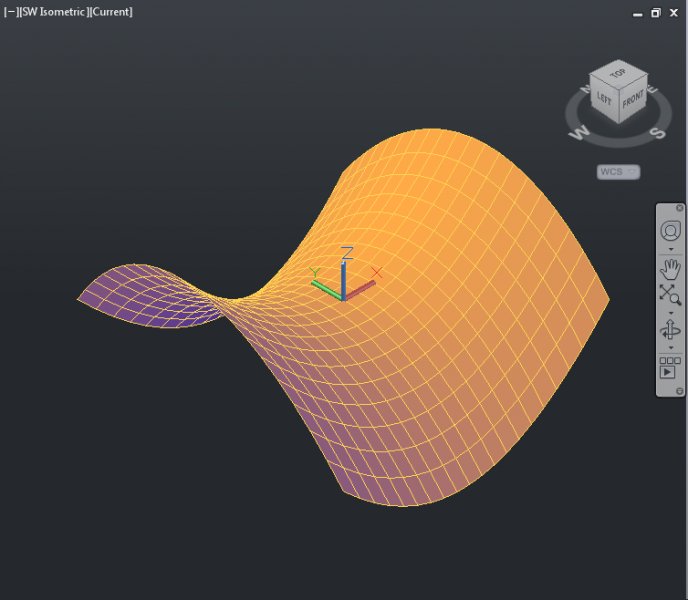

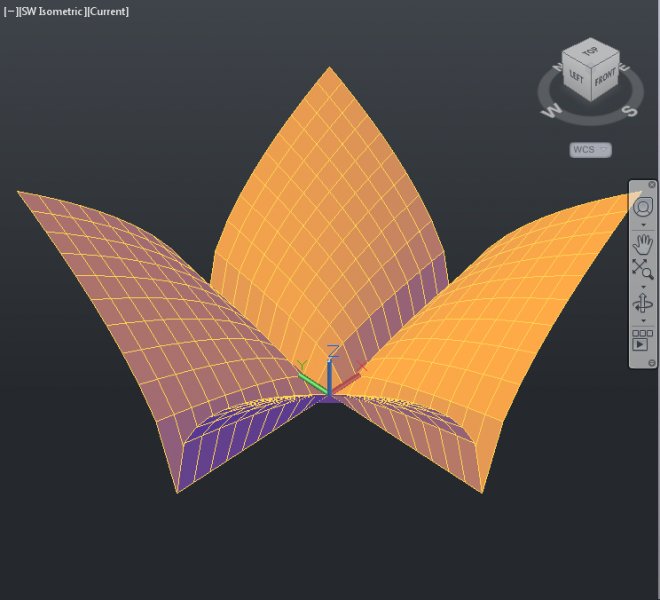

togores Posted January 24, 2013 Posted January 24, 2013 Everything is writed, help pls, I need it a loot. This is something that can be done with AutoLISP. For a video class on doing this you can watch my class at Autodesk University 2012: http://au.autodesk.com/?nd=class&session_id=10671 Here are some samples: Quote
the downing effect Posted January 25, 2013 Posted January 25, 2013 I will definately check out the video over the weekend, thanks Quote
