matramurena Posted March 20, 2008 Posted March 20, 2008 Hi, I made a drawing in Acad, it is a piece from a puzzle, with a round bit on one end flat surfaces. When I import this into 3DS Max, I get facettes when I render it. I can't seem te get the puzzle-piece look better without distorting the flatness of the front and back side... Any suggestions? Please? Quote
matramurena Posted March 27, 2008 Author Posted March 27, 2008 I tried it, but it doesn't seem to get rid of the facettes I have in the picture. When I render the piece in Acad it looks great with facetres at 10. When I render it in Max it looks faceted.... Any other suggestions? Quote
matramurena Posted March 30, 2008 Author Posted March 30, 2008 Yes I tries Turbosmooth as well. The problem is that it deforms the whole object when I do that. It's about the same when you have a cylinder with just 8 sides. Then I have to get this looking round again without simply setting it to more sides and without the flatness of the top and botom to be affected..... I can't seem to do that... Quote
matramurena Posted March 30, 2008 Author Posted March 30, 2008 To make it a bit more understandable, here's the picture with the pieces in it and a detail of what I want to have smoothed out. Quote

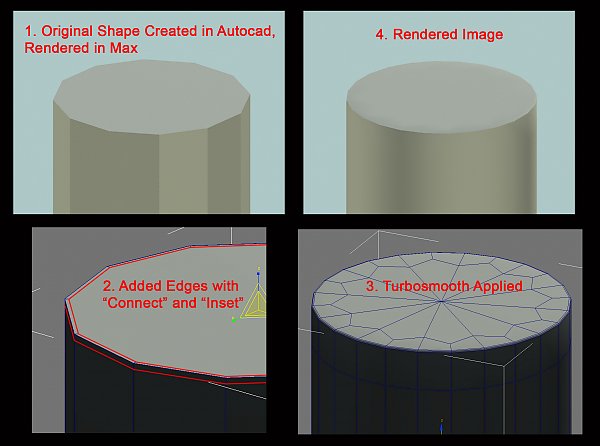

Cad64 Posted March 30, 2008 Posted March 30, 2008 In order to use the Turbosmooth modifier effectively, you must first add some extra edges to your object. This will force Turbosmooth to respect your sharp corners Quote
craigp Posted March 31, 2008 Posted March 31, 2008 Sorry I should of explained that first - Thanks CAD64! Quote
matramurena Posted March 31, 2008 Author Posted March 31, 2008 Thank you! I'm able to use it on a cilinder now. But I still can't get my puzzle-piece to work. I've attached it so anyone can have a go with it. Puzzelstuk.dwgFetching info... Quote
craigp Posted March 31, 2008 Posted March 31, 2008 This has totally got me mate. None of the smooth modifiers are working, I have tried re-drawing the solid still no luck. Totally stuck with it sorry, would love to know if anyone figures it out - Like most things in MAX it prob a tick in a little box. Quote
hendie Posted March 31, 2008 Posted March 31, 2008 looks like you may have to edit each vertex manually, or even add some more Quote

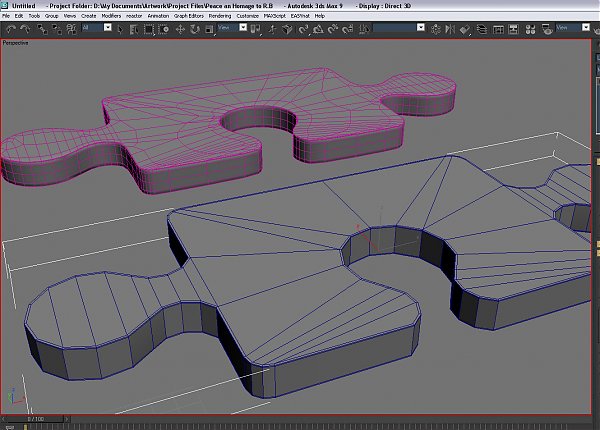

Cad64 Posted March 31, 2008 Posted March 31, 2008 As Hendie suggested, you just need to add more geometry for Turbosmooth to work with. Take a look at what I did below: Quote
matramurena Posted April 1, 2008 Author Posted April 1, 2008 That looks great! Could you send me the max file of that piece? I'll have a go at it myself but I need to finish my render soon and it will look way better using this bit. Quote
matramurena Posted April 1, 2008 Author Posted April 1, 2008 Thanx mate! I'll have a go with this. I'll post the finished drawing when I'm done. Quote
matramurena Posted April 14, 2008 Author Posted April 14, 2008 Well, the design of our wall has been finished in time. The print came out quite the way I expacted it to be. A bit darker than I had it on my screen, but it looks very good. Seeing the way the wall turned out to be I think it would have looked really silly if the puzzle-piece hadn't been facetted by CAD64. Thanx a lot for that! Quote
Cad64 Posted April 15, 2008 Posted April 15, 2008 Wow, that looks great! And yah, if you had left those pieces as they were, at that large scale it would have looked really bad. I'm glad I was able to help. :wink: Quote
Ian Ibbotson Posted April 16, 2008 Posted April 16, 2008 I think that this is an issue with the difference AutoCAD displays and renders geometry and the way Max displays and renders geometry. You can alter a few display settings in AutoCAD and get a number of different results regarding the amount of facettes. Once the geometry is created (in this case by extruding), the edge details seem to be 'set in stone'. One quick solution would be to use the lines you created in AutoCAD for the jigsaw pieces (ie do not extrude them in AutoCAD). Import just the lines into Max and extrude (using and extrude modifier) them. The lines will need to be closed polygons, by the way. The edges of the extruded geometry will then respect the smooth lines you imported Hope this helps Quote

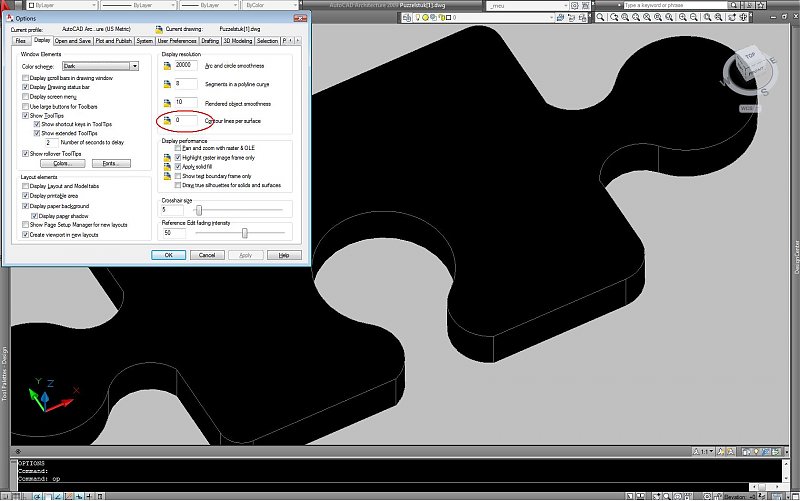

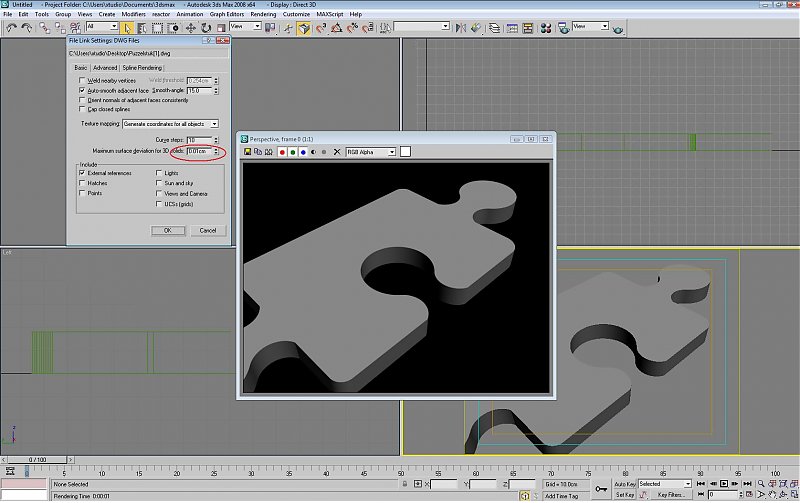

xtudio Posted July 21, 2008 Posted July 21, 2008 Hi, it may be a little to late, but about the facetres problem when importing a .dwg file to Max, you have to modify some settings to resolve this problem. First in AutoCAD, on Options --> Display, you must set the Contour lines per surface to 0, and in Max on the Link manager --> Maximum surface deviation for 3D solids to 0,01 Hope to be useful in the future Quote
corrosive Posted June 18, 2010 Posted June 18, 2010 matramurena said: Hi, I made a drawing in Acad, it is a piece from a puzzle, with a round bit on one end flat surfaces. When I import this into 3DS Max, I get facettes when I render it. I can't seem te get the puzzle-piece look better without distorting the flatness of the front and back side... Any suggestions? Please? your solution can be found in a dialog box that will appear when you import your autocad file. Quote
