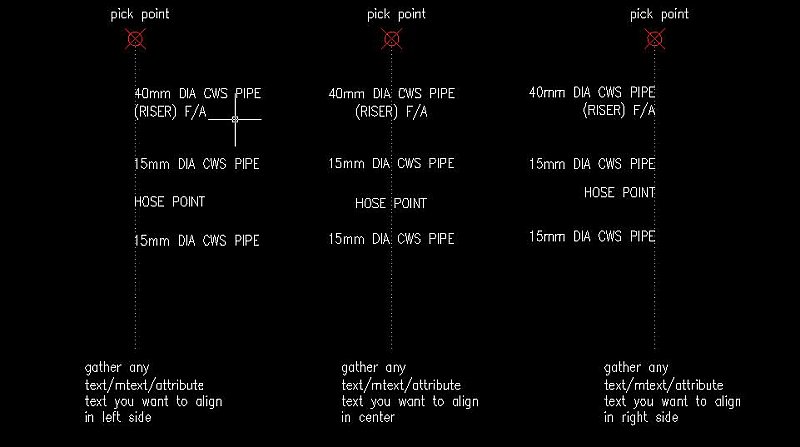

Hi Good day to all, is there any body have a route that will arrange and aligned the text/mtext/attribute on any place where i want to pick on sides or middle (as shown on image)



By selecting all the text i need to align it on the left or middle or right side so that we will not be able to eye ball it by text alignment. please



Thanks to all

alignment text.jpg

Lee Mac Grand Master

Lee Mac

Posted
Posted

This should do MTEXT and TEXT:



[b][color=RED]([/color][/b][b][color=BLUE]defun[/color][/b] c:talign  [b][color=RED]([/color][/b][b][color=BLUE]/[/color][/b] ss pt tmp elst[b][color=RED])[/color][/b]
 [b][color=RED]([/color][/b][b][color=BLUE]vl-load-com[/color][/b][b][color=RED])[/color][/b]
 [b][color=RED]([/color][/b][b][color=BLUE]or[/color][/b] tal:def [b][color=RED]([/color][/b][b][color=BLUE]setq[/color][/b] tal:def [b][color=#ff00ff]"Left"[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
 [b][color=RED]([/color][/b][b][color=BLUE]if[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]and[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]setq[/color][/b] ss [b][color=RED]([/color][/b][b][color=BLUE]ssget[/color][/b] [b][color=DARKRED]'[/color][/b][b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=#009900]0[/color][/b] . [b][color=#ff00ff]"*TEXT"[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
          [b][color=RED]([/color][/b][b][color=BLUE]setq[/color][/b] pt [b][color=RED]([/color][/b][b][color=BLUE]getpoint[/color][/b] [b][color=#ff00ff]"\nSelect Alignment Point: "[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
   [b][color=RED]([/color][/b][b][color=BLUE]progn[/color][/b]
     [b][color=RED]([/color][/b][b][color=BLUE]initget[/color][/b] [b][color=#ff00ff]"Left Middle Right"[/color][/b][b][color=RED])[/color][/b]
     [b][color=RED]([/color][/b][b][color=BLUE]setq[/color][/b] tmp [b][color=RED]([/color][/b][b][color=BLUE]getkword[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]strcat[/color][/b] [b][color=#ff00ff]"\nAlignment? [L/M/R] <"[/color][/b] tal:def [b][color=#ff00ff]">: "[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
     [b][color=RED]([/color][/b][b][color=BLUE]or[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]not[/color][/b] tmp[b][color=RED])[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]setq[/color][/b] tal:def tmp[b][color=RED])[/color][/b][b][color=RED])[/color][/b]
     [b][color=RED]([/color][/b][b][color=BLUE]foreach[/color][/b] elst  [b][color=RED]([/color][/b][b][color=BLUE]mapcar[/color][/b] [b][color=DARKRED]'[/color][/b][b][color=BLUE]entget[/color][/b]
                      [b][color=RED]([/color][/b][b][color=BLUE]vl-remove-if[/color][/b] [b][color=DARKRED]'[/color][/b][b][color=BLUE]listp[/color][/b]
                        [b][color=RED]([/color][/b][b][color=BLUE]mapcar[/color][/b] [b][color=DARKRED]'[/color][/b][b][color=BLUE]cadr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]ssnamex[/color][/b] ss[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
       [b][color=RED]([/color][/b][b][color=BLUE]cond[/color][/b] [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] [b][color=#ff00ff]"TEXT"[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]cdr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] [b][color=#009900]0[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
              [b][color=RED]([/color][/b][b][color=BLUE]setq[/color][/b] elst [b][color=RED]([/color][/b]mod [b][color=#009900]10[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]list[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]car[/color][/b] pt[b][color=RED])[/color][/b]
                                       [b][color=RED]([/color][/b][b][color=BLUE]caddr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] [b][color=#009900]10[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b]
                                       [b][color=RED]([/color][/b][b][color=BLUE]cadddr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] [b][color=#009900]10[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b]
              [b][color=RED]([/color][/b]mod [b][color=#009900]72[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]cond[/color][/b] [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] tal:def [b][color=#ff00ff]"Left"[/color][/b][b][color=RED])[/color][/b] [b][color=#009900]0[/color][/b][b][color=RED])[/color][/b]
                            [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] tal:def [b][color=#ff00ff]"Middle"[/color][/b][b][color=RED])[/color][/b] [b][color=#009900]1[/color][/b][b][color=RED])[/color][/b]
                            [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] tal:def [b][color=#ff00ff]"Right"[/color][/b][b][color=RED])[/color][/b] [b][color=#009900]2[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
                   [b][color=RED]([/color][/b]mod [b][color=#009900]11[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]cdr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] [b][color=#009900]10[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
             [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] [b][color=#ff00ff]"MTEXT"[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]cdr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] [b][color=#009900]0[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
              [b][color=RED]([/color][/b][b][color=BLUE]setq[/color][/b] elst [b][color=RED]([/color][/b]mod [b][color=#009900]10[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]list[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]car[/color][/b] pt[b][color=RED])[/color][/b]
                                       [b][color=RED]([/color][/b][b][color=BLUE]caddr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] [b][color=#009900]10[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b]
                                       [b][color=RED]([/color][/b][b][color=BLUE]cadddr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] [b][color=#009900]10[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b]
              [b][color=RED]([/color][/b]mod [b][color=#009900]71[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]cond[/color][/b] [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] tal:def [b][color=#ff00ff]"Left"[/color][/b][b][color=RED])[/color][/b] [b][color=#009900]1[/color][/b][b][color=RED])[/color][/b]
                            [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] tal:def [b][color=#ff00ff]"Middle"[/color][/b][b][color=RED])[/color][/b] [b][color=#009900]2[/color][/b][b][color=RED])[/color][/b]
                            [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] tal:def [b][color=#ff00ff]"Right"[/color][/b][b][color=RED])[/color][/b] [b][color=#009900]3[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
   [b][color=RED]([/color][/b][b][color=BLUE]princ[/color][/b] [b][color=#ff00ff]"\n<!> No Text Selected <!>"[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
 [b][color=RED]([/color][/b][b][color=BLUE]princ[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]

[b][color=RED]([/color][/b][b][color=BLUE]defun[/color][/b] mod [b][color=RED]([/color][/b]code val elst[b][color=RED])[/color][/b]
 [b][color=RED]([/color][/b][b][color=BLUE]entmod[/color][/b]
   [b][color=RED]([/color][/b][b][color=BLUE]subst[/color][/b]
     [b][color=RED]([/color][/b][b][color=BLUE]cons[/color][/b] code val[b][color=RED])[/color][/b]
       [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] code elst[b][color=RED])[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]

VisDak Collaborator

VisDak

Posted
  • Author
Posted

Thank Lee, function is great only i cannot used on UCS rotated plan, its jump aways the text, can be fix it, :) Thanks again

Lee Mac Grand Master

Lee Mac

Posted
Posted

Give this a shot, should work with UCS (hopefully!):



[b][color=RED]([/color][/b][b][color=BLUE]defun[/color][/b] c:talign  [b][color=RED]([/color][/b][b][color=BLUE]/[/color][/b] ss pt tmp elst[b][color=RED])[/color][/b]
 [b][color=RED]([/color][/b][b][color=BLUE]vl-load-com[/color][/b][b][color=RED])[/color][/b]
 [b][color=RED]([/color][/b][b][color=BLUE]or[/color][/b] tal:def [b][color=RED]([/color][/b][b][color=BLUE]setq[/color][/b] tal:def [b][color=#ff00ff]"Left"[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
 [b][color=RED]([/color][/b][b][color=BLUE]if[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]and[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]setq[/color][/b] ss [b][color=RED]([/color][/b][b][color=BLUE]ssget[/color][/b] [b][color=DARKRED]'[/color][/b][b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=#009900]0[/color][/b] . [b][color=#ff00ff]"*TEXT"[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
          [b][color=RED]([/color][/b][b][color=BLUE]setq[/color][/b] pt [b][color=RED]([/color][/b][b][color=BLUE]getpoint[/color][/b] [b][color=#ff00ff]"\nSelect Alignment Point: "[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
   [b][color=RED]([/color][/b][b][color=BLUE]progn[/color][/b]
     [b][color=RED]([/color][/b][b][color=BLUE]setq[/color][/b] pt [b][color=RED]([/color][/b][b][color=BLUE]trans[/color][/b] pt [b][color=#009900]1[/color][/b] [b][color=#009900]0[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
     [b][color=RED]([/color][/b][b][color=BLUE]initget[/color][/b] [b][color=#ff00ff]"Left Middle Right"[/color][/b][b][color=RED])[/color][/b]
     [b][color=RED]([/color][/b][b][color=BLUE]setq[/color][/b] tmp [b][color=RED]([/color][/b][b][color=BLUE]getkword[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]strcat[/color][/b] [b][color=#ff00ff]"\nAlignment? [L/M/R] <"[/color][/b] tal:def [b][color=#ff00ff]">: "[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
     [b][color=RED]([/color][/b][b][color=BLUE]or[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]not[/color][/b] tmp[b][color=RED])[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]setq[/color][/b] tal:def tmp[b][color=RED])[/color][/b][b][color=RED])[/color][/b]
     [b][color=RED]([/color][/b][b][color=BLUE]foreach[/color][/b] elst  [b][color=RED]([/color][/b][b][color=BLUE]mapcar[/color][/b] [b][color=DARKRED]'[/color][/b][b][color=BLUE]entget[/color][/b]
                      [b][color=RED]([/color][/b][b][color=BLUE]vl-remove-if[/color][/b] [b][color=DARKRED]'[/color][/b][b][color=BLUE]listp[/color][/b]
                        [b][color=RED]([/color][/b][b][color=BLUE]mapcar[/color][/b] [b][color=DARKRED]'[/color][/b][b][color=BLUE]cadr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]ssnamex[/color][/b] ss[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
       [b][color=RED]([/color][/b][b][color=BLUE]cond[/color][/b] [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] [b][color=#ff00ff]"TEXT"[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]cdr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] [b][color=#009900]0[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
              [b][color=RED]([/color][/b][b][color=BLUE]setq[/color][/b] elst [b][color=RED]([/color][/b]mod [b][color=#009900]10[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]list[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]car[/color][/b] pt[b][color=RED])[/color][/b]
                                       [b][color=RED]([/color][/b][b][color=BLUE]caddr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] [b][color=#009900]10[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b]
                                       [b][color=RED]([/color][/b][b][color=BLUE]cadddr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] [b][color=#009900]10[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b]
              [b][color=RED]([/color][/b]mod [b][color=#009900]72[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]cond[/color][/b] [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] tal:def [b][color=#ff00ff]"Left"[/color][/b][b][color=RED])[/color][/b] [b][color=#009900]0[/color][/b][b][color=RED])[/color][/b]
                            [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] tal:def [b][color=#ff00ff]"Middle"[/color][/b][b][color=RED])[/color][/b] [b][color=#009900]1[/color][/b][b][color=RED])[/color][/b]
                            [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] tal:def [b][color=#ff00ff]"Right"[/color][/b][b][color=RED])[/color][/b] [b][color=#009900]2[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
                   [b][color=RED]([/color][/b]mod [b][color=#009900]11[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]cdr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] [b][color=#009900]10[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
             [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] [b][color=#ff00ff]"MTEXT"[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]cdr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] [b][color=#009900]0[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
              [b][color=RED]([/color][/b][b][color=BLUE]setq[/color][/b] elst [b][color=RED]([/color][/b]mod [b][color=#009900]10[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]list[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]car[/color][/b] pt[b][color=RED])[/color][/b]
                                       [b][color=RED]([/color][/b][b][color=BLUE]caddr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] [b][color=#009900]10[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b]
                                       [b][color=RED]([/color][/b][b][color=BLUE]cadddr[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] [b][color=#009900]10[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b]
              [b][color=RED]([/color][/b]mod [b][color=#009900]71[/color][/b] [b][color=RED]([/color][/b][b][color=BLUE]cond[/color][/b] [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] tal:def [b][color=#ff00ff]"Left"[/color][/b][b][color=RED])[/color][/b] [b][color=#009900]1[/color][/b][b][color=RED])[/color][/b]
                            [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] tal:def [b][color=#ff00ff]"Middle"[/color][/b][b][color=RED])[/color][/b] [b][color=#009900]2[/color][/b][b][color=RED])[/color][/b]
                            [b][color=RED]([/color][/b][b][color=RED]([/color][/b][b][color=BLUE]eq[/color][/b] tal:def [b][color=#ff00ff]"Right"[/color][/b][b][color=RED])[/color][/b] [b][color=#009900]3[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
   [b][color=RED]([/color][/b][b][color=BLUE]princ[/color][/b] [b][color=#ff00ff]"\n<!> No Text Selected <!>"[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]
 [b][color=RED]([/color][/b][b][color=BLUE]princ[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]

[b][color=RED]([/color][/b][b][color=BLUE]defun[/color][/b] mod [b][color=RED]([/color][/b]code val elst[b][color=RED])[/color][/b]
 [b][color=RED]([/color][/b][b][color=BLUE]entmod[/color][/b]
   [b][color=RED]([/color][/b][b][color=BLUE]subst[/color][/b]
     [b][color=RED]([/color][/b][b][color=BLUE]cons[/color][/b] code val[b][color=RED])[/color][/b]
       [b][color=RED]([/color][/b][b][color=BLUE]assoc[/color][/b] code elst[b][color=RED])[/color][/b] elst[b][color=RED])[/color][/b][b][color=RED])[/color][/b][b][color=RED])[/color][/b]

VisDak Collaborator

VisDak

Posted
  • Author
Posted

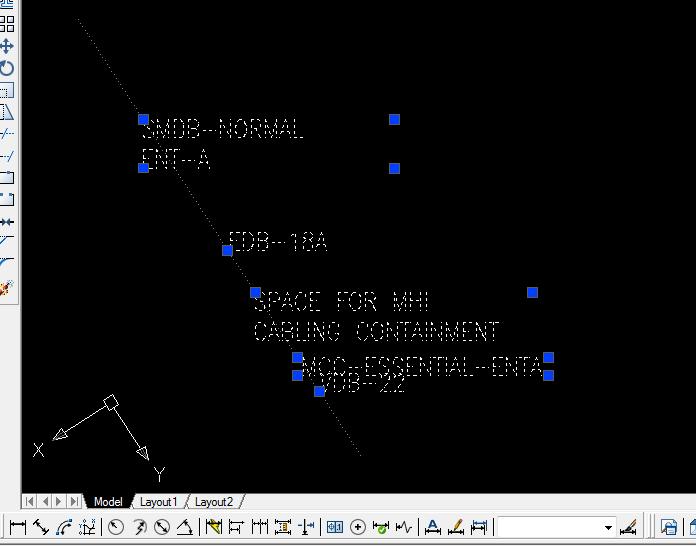

Hi Lee little bit more, the text is not now thrown around:) only it will not align vertical its just aligning according to Y axis inclined to UCS, see image thanks for your hard work on it Lee,

UCS align.jpg

Lee Mac Grand Master

Lee Mac

Posted
Posted

Are you sure you are trying the new version? - it works fine for me :unsure:



Try closing and re-opening your drawing, and reload the routine and test it again. :)

VisDak Collaborator

VisDak

Posted
  • Author
Posted

Yes its ok LEE, i have an idea how i will us with out using the UCS, :D i will set to work the text on layout tabs not in the model tabs i will used only the model tabs for working drawings (plans and layouts),



If the TEXT are completed on the layout tabs, i will use the "talign.Lsp" to align the text and then command "CHSPACE" and select all text and leaders and presto!! the text are transfer to model that not affects the text alingment..:lol:



Thanks LEE for the Lisp..:P
