Found 2 results

  1. MichaelAllfire
    Hi all, I have a rectangle in a block that is constrained so that the area will only ever be 12 sq.m. What I am trying to achieve with the constraints is to have it always be 12sq.m, and having no side greater than 4200mm long. I've limited one edge to a maximum of 4200mm, but when I try to limit the other direction to 4200mm, it doesn't seem to work. Any ideas on how to achieve this? I've attached an example file. Thanks in advance! Rectangle example.dwg
  2. maloo78

    constrains how to turn on?

    maloo78 posted a topic in AutoCAD LT

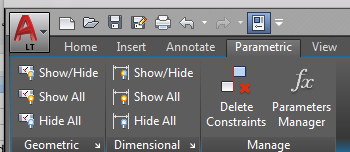

    Hello, pretty new to CAD, I'm trying use dimensional constraints on object, but the buttons on the parametric tab is missing (see pic). All the doc's I found are about turning it dimensional constrains off, not the other way around. What am I missing? using acad LT '17 on windows. Thanks
×
×
