Hello, well i need your help for a college project.. i have a map from an abandoned camp in the suburbs of the city and i have to make a 'digitization' (maybe through Raster Image??!!) into AutoCAD (im working on Autocad 08) ... Can someone help me and write some kind "directions" on how to do this?! Thanks in advance!
- 4 replies
-
- insert jpeg
- insert
-
(and 3 more)
Tagged with:
-

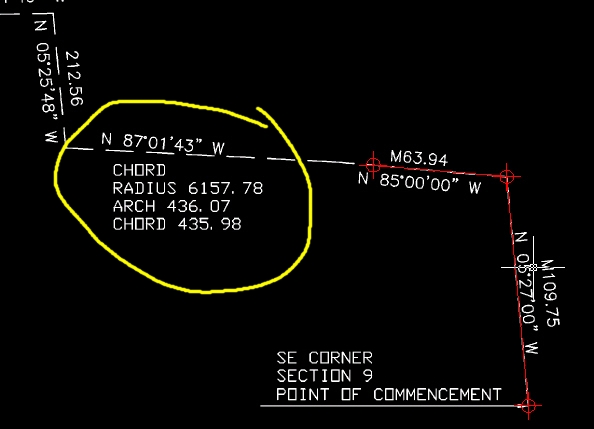

Greetings All, First off, I'm a GIS user using AutoCAD (self taught) to supplement my work, I'm running AC 2005 (plain vanilla, no add ons). I am attempting to digitize from a raster I have attached to my drawing. The image is scaled and rotated appropriately. However, I'm at a loss at how to recreate an arc where RADIUS, ARCH and CHORD are given. I hope to attach a screen shot below to better illustrate my question, and that is, how do I re-create this rascal in AutoCAD? The line (arc) I am trying to re-create is circled in yellow. Many many thanks in advance if you can help. Dave
- 8 replies
-
- radius arc chord
- digitizing
-
(and 1 more)
