Dynamic Block line to adapt to rotating contour
i_try posted a topic in AutoCAD 2D Drafting, Object Properties & Interface

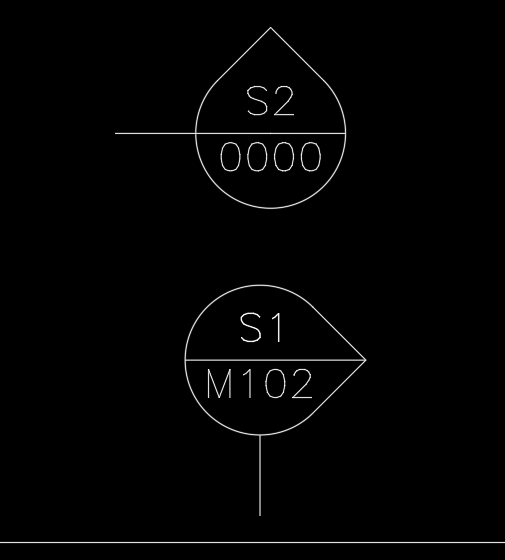

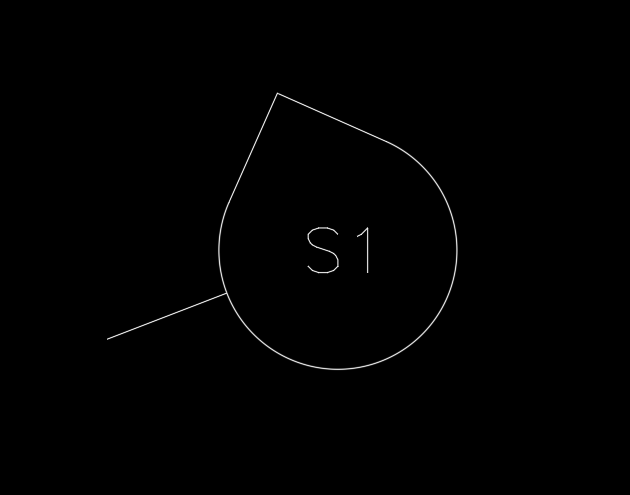

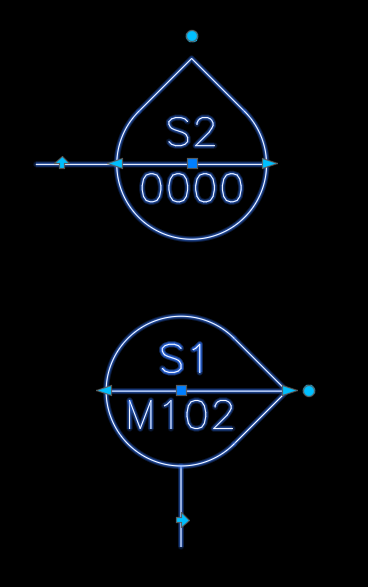

I have a dynamic block for section cuts and I need the interior line to adapt stretch to to be trimed by the contour when I turn it. this is the block when I select it for the time being. My current work around is that I have the line constrained with a stretch that I manually need to bring to the edge. I also have a visibility state so I can pass from section with page or same page is there a way to place the same attribute (Not two as I currently have) in two location depending on the state? Is there someone who knows how to make this work? with just the flip and the turn. I also have a visibility state so I can pass from section with page or same page is there a way to place the same attribute in two location depending on the state? thanks
-
I'm struggling with a concept we are trying to run. We have created a spring, cut from a cylindrical pipe and we wish to apply torsion so as to tighten it up, therefore reducing its diameter and increasing it's length BUT maintaining the same pitch. The profile is a 1" wide rectangle and our aim is to ensure it maintains its pitch so that, in our application, we essentially wind it up to fit onto a smaller diameter and need to represent the two states. Can this be done? I tried to figure it out using adaptive springs to give me the sizes I need but couldn't quite get it to work, so hopefully someone can shed some light on this for me! I hope the image helps to show what I'm aiming to do.
