(defun c:Test ( / lyn) (vlax-for obj (vla-get-layers (vla-get-ActiveDocument (vlax-get-acad-object))) (or (wcmatch (setq lyn (vla-get-name obj)) "*|*") (and (wcmatch lyn "AN_*,WS_*") (vla-put-Description obj (if (wcmatch lyn "AN_*") "Annotation" "Wall Structure")) ) ) ) (princ) ) (vl-load-com)

That's to pass over external references' layers. Why are you asking for something and you are doing something else ? Anyway, just build the list as I did in the following program to make it working professionally. (defun c:Test ( / lst lyn ) (setq lst '(("AN_" "Annotation Layer - ") ("CH_" "Colour Hatch Layer - ") ) ) (vlax-for obj (vla-get-layers (vla-get-ActiveDocument (vlax-get-acad-object))) (or (wcmatch (setq lyn (vla-get-name obj)) "*|*") (and (setq fnd (assoc (substr lyn 1 3) lst)) (vla-put-Description obj (strcat (cadr fnd) lyn)) ) ) ) (princ) ) (vl-load-com)

To check just GROUP them with GROUPDISPLAYMODE set at 1 or 2 (initial Value) the grip displayed would be the geometric center of the grouped objects.

ok anyway thx for your help

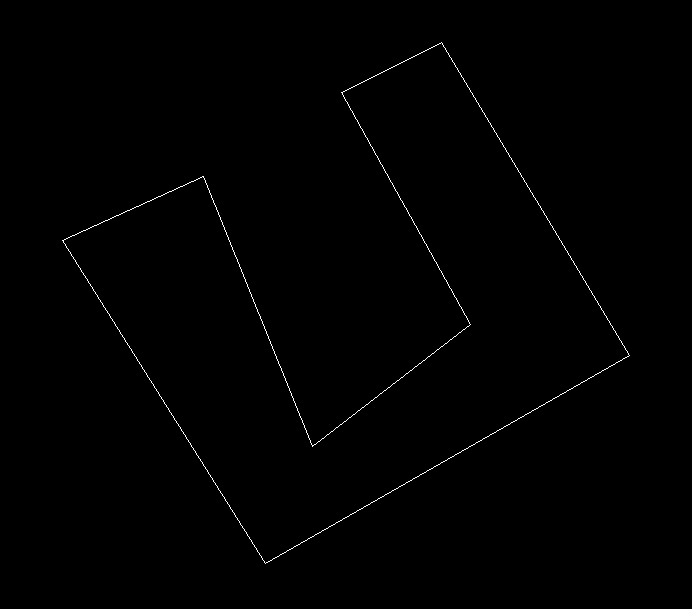

Steven P draw a pline as a "U" rotated and compare the methods suggested. You could average points also but it may not be geom centre.

I use a lisp to plot and use window not layout option, unless something screwy by user works every time.

Going to have to agree with the others. Why learn paper 2D drafting techniques for a modern CAD system?

Thank goodness AutoDesk did not design AutoCAD such that we could work smarter rather than harder. Were the pages of instructions you posted not clear enough?

Thanks for the encouragement . So comments are welcome anytime . (defun c:Lentxt (/ ss) (if (setq ss (ssget "_:L" '((0 . "LINE")))) ( (lambda (i / ss1 e dis pt1 pt2 pt3) (while (setq ss1 (ssname ss (setq i (1+ i)))) (setq e (entget ss1 )) (setq dis (distance (setq pt1 (cdr (assoc 10 e)))(setq pt2 (cdr (assoc 11 e))))) (cond ((< (car pt1)(car pt2)) (setq pt3 (polar pt1 (setq ang (angle pt1 pt2)) (/ dis 2.))) ) ((> (car pt1)(car pt2))(setq pt3 (polar pt2 (setq ang (angle pt2 pt1)) (/ dis 2.))) ) ) (entmakex (list (cons 0 "TEXT") (cons 10 (polar pt3 ang 0)) (cons 1 (rtos dis 2)) (cons 50 ang) (cons 40 (getvar 'textsize)))) ) ) -1 ) (princ "\n No Line(s) selected") ) (princ) ) Thanks. Tharwat

I am not satisfied with the answer. I asked the 2D drawing method of a spring such as attached pics at post #1, not converting 3D to 2D. Anybody else can teach me?
