IE: (setq pt1 '(0 0) pt2 '(150 250) pt3 (mapcar '+ (list 0 (cadr pt2))) pt4 (mapcar '+ (list (car pt2) 0)) ;; or less 'fancy' pt3 (list (car pt1) (+ (cadr pt1) (cadr pt2))) pt4 (list (+ (car pt1) (car pt2)) (cadr pt1)) )

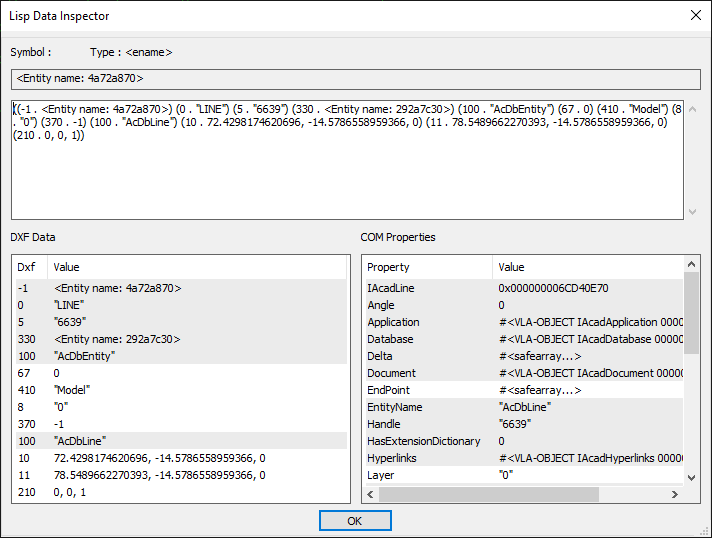

I Think that has something to do with how you setup the drawing or created the line. entsel doesn't round numbers. in this example my linear precision is set to 4 but still shows 13 digits for 10 & 11 points

Here you go. (defun c:Test (/ int sel ent nxt) ;; Tharwat Al Choufi. - Date: 27.Jun.2022 ;; ;; website: https://autolispprograms.wordpress.com ;; (and (setq int -1 sel (ssget '((0 . "*DIMENSION")))) (while (setq int (1+ int) ent (ssname sel int)) (setq nxt (tblobjname "BLOCK" (cdr (assoc 2 (entget ent))))) (while (setq nxt (entnext nxt)) (entmod (append (entget nxt) '((62 . 1)))) ) ) (command "_.REGEN") ) (princ) ) Like, Share and subscribe.

Hi guys, As thanks for helping me out through the journey of AutoLISP from multiple posts, I've decided to make a small contribution to CADTutor.net with my own code that you can download from here: https://www.cadtutor.net/forum/files/file/27-block-overkill/ Upon issuing the BOVERKILL command, This LISP will allow you to either delete blocks that area "duplicated" on top of one another, or move them to a specified layer. This LISP deletes blocks in which the blocks in comparison abides to the following three criteria below: It shares the same insertion point to a specified tolerance It shares the same effective name It shares the same effective scale to the same specified tolerance Modes of Overkill Thanks to a wonderful suggestion from one of the insights in this forum, the program has been further upgraded as of 20 April 2023. This LISP routine now also allows for three modes of overkill: Distance Plane-Axis Axes The "Distance" mode is the default mode and is the most widely used mode of overkill. This mode determines that two blocks are considered duplicates if the distance between them is within the specified tolerance inputted by the user. The "Plane-Axis" mode determines that two blocks are duplicates if the proximity of the blocks in comparison lies within one tolerance specified for one of the planes , and a separate tolerance along the third axis (normal) of that plane. Calculations are done to the UCS. The "Axes" mode determines that two blocks are duplicates by comparing three different tolerances across each axis individually. All three tolerances must be met for the program to consider the blocks a duplicate. Just like the previous mode, the UCS will be used by the program to perform the calculations. Following this, the program will also draw a circle (of a radius set within the LISP routine) on the insertion points of the processed blocks. These circles will be drawn in the "BOVERKILL-Duplicates" layer. After which it prints a report of the quantity of the deleted or modified blocks to the command line. This feature makes it easy for users to identify where duplicates are found on a large drawing with thousands of blocks. However, the dynamic properties of the block are far too hard for me to calculate as they have different position, rotation and visibility parameters that could be altered by the user. As such, they are ignored. Note that the rotation of the block does not fall in the criteria above as mirroring the block alters it's rotation values, and thus will fail on some circumstances. This means that the blocks will still be processed if as long as the three criteria above satisfy and objects are not rotated the same way. This LISP was inspired when using block counting routines (for example from Lee Mac's Block Counter routine or your own custom routines) reporting incorrect numbers due to duplicate blocks. The OVERKILL command for one reason or another is not able to delete duplicate dynamic blocks that are (for example, rotated normally then rotate through dynamic rotation to the original position). I've also cycled through the net for solutions to no avail. Thus, I opened this program for you folks to use. It's not a perfect code but I hope it will make working for you much more convenient. Any feedbacks, comments, and criticisms are welcomed as I look to learn and get better. Enjoy. Thanks, Jonathan Handojo

Thank you for your kind words, Dadgad.

Tharwat to the rescue, he'll get you back on the tracks. Is this something to be done ONLY to selected dimensions, or across the board to all dimensions in the drawing?

The dwg saved without problem. So the problem looks to be on the third party's end.

Thanks, Tharwat! Lisp has actually changed it to red, but when i moved it to another location, the red color was lost. Can you change its properties?

Like mhupp if you look at a point X Y Z etc (rtos (car pt) 2 6) will display X with 6 decimal's.

Need a dwg to comment.

That's a good point, but I am assuming if your asking the user to select the points it has to be horizontal, because their isn't anyway to tell the angle of the rectangle by just two points. maybe that is what @MetalSutton is asking about?

Compare the new endpoints of ent1 to p1 and p2 one will match the one that doesn't is the new trim point. -edit You could also use visual lisp. might need to use (vl-load-com) (setq pt (vla-intersectwith (vlax-ename->vla-Object ent1) (vlax-ename->vla-Object ent2) acextendnone)) (setq pt (vlax-safearray->List (vlax-variant-vaLue pt)))
