Annotation scale in model space does not affect the size of your objects. It does change the size of your dimension text and arrowheads, IF you have different scales assigned to each one, not all assigned to each one as you have yours. The annotation property is only an assignment attached to your dimensions. ALWAYS DRAW FULL SIZE. Like Cyberangel says, you have to use viewports in paperspace to get annotative dimensions to work. Do not try to set up scaled objects in modelspace. That's why paperspace layouts came to be. I've never done it and never will. A lot of shops will frown upon scaling objects in modelspace to the point of handing out disciplinary actions. Another thing, if you set ANNOALLVISIBLE to zero, the dimensions that do not have the same property as the modelspace current annotation scale will disappear in modelspace and only be visible in the viewport with that scale. Toggle the current modelspace annotation scale back and forth between 1:2 and 1:1 in the version of your drawing that I attached here to see what I mean. The dimension will change size because it has more than one scale. The way you had it before with two dimensions and two scales each caused no difference to show up. Needing only one object and one dimension was the whole point of inventing annotative dimensions in the first place. More than one viewport per layout is just fine also. They don't have to both have the same scale applied, and the drawing can be presented in more than one viewport, each with a different scale. I think you can go up to 24 viewports on one layout. Did you know you can apply annotative scaling to text, mtext, dimensions, leaders and blocks? Here's your drawing back. One object, one dimension, two viewports, two different scales on layout1. This is the only way it works. You can add more scales to these dimensions too, if needed. Test.dwg

Annotation scales are intended for use in viewports. You can create viewports for both of those views, assign different scales to them, and have the dimensions show up at the same scale. If you want the sizes to differ, turn off the annotation property.

good moorning , I tried the routine and it was excellent, it works perfect thanks. I will study it regards

Post dwg so people can look at it. In model what happens when you do UCS W, PLAN then Zoom E can you see object

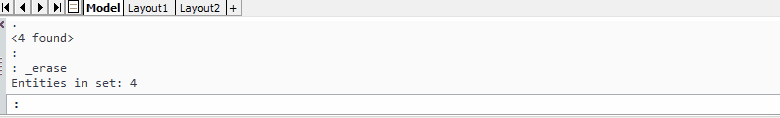

You might be using the old lisp still to reload the lsp file drag it from your explorer into autocad and drop it the attached lisp is working for me. Also this is saving in the windows registry so if your using a mac or don't have permission to change it this might not work. --update setenv Sets a system environment variable to a specified value Supported Platforms: Windows and Mac OS They are also stored in the environmental variables of your cad software so i don't think permissions are an issue either but don't know for sure. cir.lsp

no my dumb ass made a few mistakes should be fixed now.

Another: http://www.lee-mac.com/localising.html

CIRCLERAD (System Variable) is not saved but will retrievable as long as that drawing stays open. (setvar 'circlerad (getdist "Enter Radius or pick points ")) While there's no System Variable for diameter you could divide diameter in half to save as CIRCLERAD then multiply by 2 when you need diameter in the lisp.

I guess that's why the 11gb RTX 2080 Ti and the 11 gb GTX 1080 Ti ($900) score as well or better than the 24 gb Quadro P6000 and the 16 gb Quadro P5000 ($2,500)? Quadros being better for AutoCAD is a myth and a lie! You'll see NO difference between them in AutoCAD, Revit, Maya, Max, SketchUp etc..
